Time relay, delayed switch-off, 1 Form A (N/O), 24 VDC, 0.02 A/48 VDC, 8324590000
Unit Price (€ / pc.)
58.4766 € *
Standard delivery time from the manufacturer is: 9 Weeks

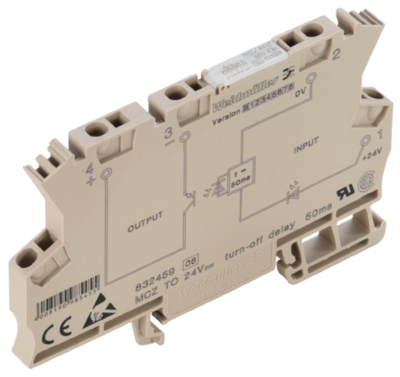

Timing relay, 8324590000, Weidmüller
Time relay, 24 V DC ±10 %, 1 NO contact (transistor), 20 mA, tension spring connection, time relay for processing signals in the control system. Short pulses are extended in time and thus reliably detected by the downstream control modules.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Function | delayed switch-off | |
| Contact type | 1 Form A (N/O) | |
| Voltage | 24 VDC | |
| Breaking capacity | 0.02 A/48 VDC | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364110 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| Date of RoHS guidelines | 3/31/15 |
