8286410000 | Weidmüller
Time relay, 0.15 s, delayed switch-off, 1 Form A (N/O), 24 VDC, 0.02 A/48 VDC, 8286410000
Unit Price (€ / pc.)
58.4766 € *
Available: 8 pcs.
Available in 6 Days: 50 pcs. - if ordered today

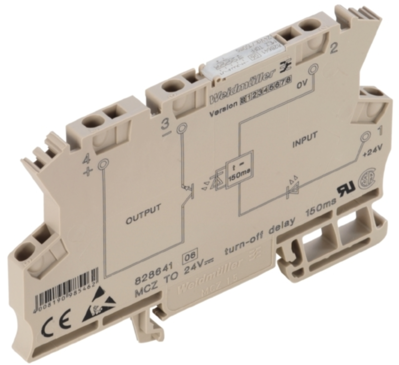

Timing relay, 8286410000, Weidmüller
Time relay, 24 V DC ±10 %, 1 NO contact (transistor), 20 mA, tension spring connection, time relay for processing signals in the control system. Short pulses are extended in time and thus reliably detected by the downstream control modules.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Time display | 0.15 s | |
| Function | delayed switch-off | |
| Contact type | 1 Form A (N/O) | |
| Voltage | 24 VDC | |
| Breaking capacity | 0.02 A/48 VDC | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364110 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
