2496190000 | Weidmüller
Multifunction relay, 0.005 s to 10 h, 1 Form C (NO/NC), 30-250 V, 5 A/250 VAC, 2496190000
Unit Price (€ / pc.)
39.1986 € *
Available in 6 Days: 5 pcs. - if ordered today

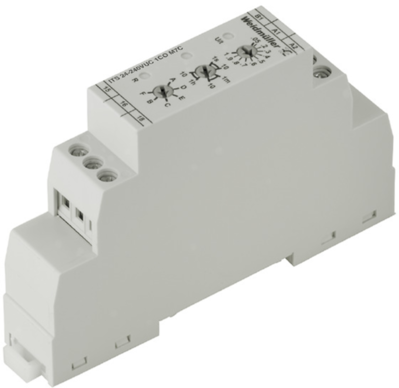

Timing relay, 2496190000, Weidmüller
Time relay, with separate control input, 1 changeover contact (AgNi),5 A, screw connection, time relay for processing signals in the control system. Short pulses are extended in time and thus reliably recognized by the downstream control modules.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Time display | 0.005 s to 10 h | |
| Contact type | 1 Form C (NO/NC) | |
| Voltage | 30-250 V | |
| Breaking capacity | 5 A/250 VAC | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
