Weidmüller temperature transducer, 8432300000, WTS4 THERMO
As an alternative, we recommend the following item:
Temperature transducer, ACT20M-TCI-AO-S
Order No.: 53P7561
Manufacturer: Weidmüller
per pc. 179.0831 € *
*incl. VAT plus shipping costs

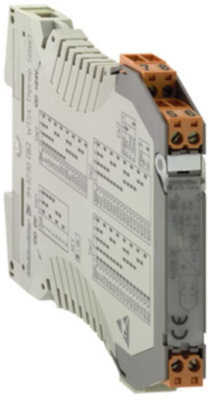

Temperature Transmitter, 8432300000, Weidmüller
Thermal signal isolator/converters are capable of recording and linearising thermal voltages and then converting them into standardised DC current/voltage signals. The input and output parameters on the Thermo signal converter can be configured as required. An LED signals when there is a line break on the thermal wire. These devices are available with or without electrical isolation.
Conventional thermocouples can be connected on the input side, in accordance with IEC 564. This measures the thermal voltage that is created when two different metal alloys come into contact with each other. A differential amplifier is used to process these values and convert them into standardised signals.
Technical specifications
| Version | temperature transducer | |
| Accuracy | ±0.1 % | |
| max. operating temperature | 1820 °C | |
| min. operating temperature | -200 °C | |
| Response Time | 6 s |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85043129 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | not_specified |
