0244220000 | Weidmüller
Terminal block, 16 pole, 2.5 mm², clamping points: 32, yellow, screw connection, 24 A, 0244220000
Order No.: 50P0308
EAN: 4008190107222
MPN:
0244220000
MK 4/16
Unit Price (€ / pc.)
14.3514 € *
Available: 9 pcs.
Available in 6 Days: 100 pcs. - if ordered today

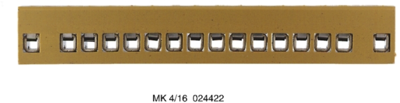

Terminal block, 0244220000, Weidmüller
Terminal block, screw connection, 2.5 mm², 400 V, 24 A, number of poles: 16, 17 mm, medium yellow.
Terminal strip for direct screw connection on the housing base.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | terminal block | |
| Pin number | 16 pole | |
| Cable cross-section | 2.5 mm² | |
| Number of terminals | 32 | |
| Colour | yellow | |
| Connection | screw connection | |
| Rated current | 24 A | |
| AWG cross-section | AWG 22-12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
