1468880000 | Weidmüller
Stripping pliers for flexible cables, 0.25-6.0 mm², AWG 24-10, L 190 mm, 222 g, 1468880000
Unit Price (€ / pc.)
137.6116 € *
Available in 6 Days: 5 pcs. - if ordered today

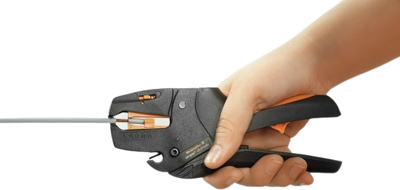

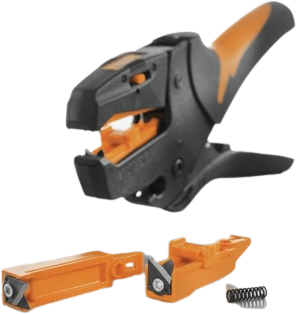

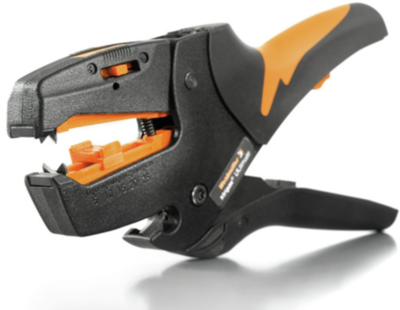

Stripping tool, 1468880000, WEIDMÜLLER
Stripping tool with automatic self-adjustment for precise and fast stripping of conductors. Double-insulated cables in two process steps without special adjustment.
Features
- Stripping tools with automatic self-adjustment
- Stripping length adjustable via end stop
- Automatic opening of clamping jaws after stripping
- Adjustable to diverse insulation thicknesses
- For flexible and solid conductors
Applications
- Mechanical and plant engineering
- Railway and rail traffic
- Wind energy
- Robot technology
- Explosion protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| 1000V Insulated | No | |
| AWG cross-section | AWG 24-10 | |
| Length | 190 mm | |
| Weight | 222 g | |
| Stripping Length | 25 mm | |
| Suitable for | flexible cables | |
| Product type | stripping pliers | |
| Cable cross-section | 0.25-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | not_relevant |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
