8421380000 | Weidmüller

Solid state relay, 230 VAC, 5-48 VDC, 20 mA, DIN rail, 8421380000

Order No.: 53P4423
EAN: 4032248006052
MPN:
8421380000
MCZ O 230VAC
Series: MCZ-SERIES

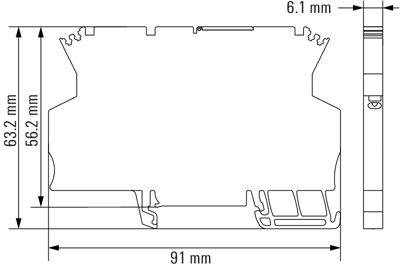

8421380000 Weidmüller Solid State Relays Image 1

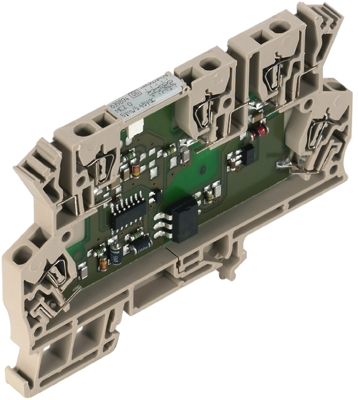

8421380000 Weidmüller Solid State Relays Image 2

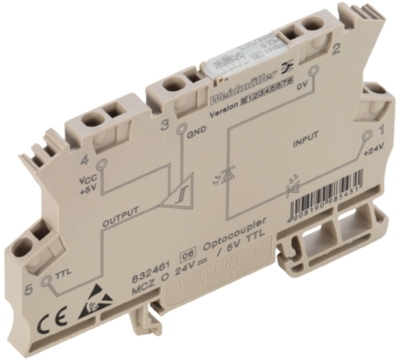

8421380000 Weidmüller Solid State Relays Image 3
Image may differ
Unit Price (€ / pc.)
49.4564 € *
Available: 0 pcs.
Available in 6 Days: 50 pcs.
Leadtime: On Request **
Total Price:
49.46 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
49.4564 €

Solid state relay, 8421380000, Weidmüller

Solid state relay, open on one side, 230 V AC +5 % / -15 %,1 NO contact (transistor), 5...48 V DC, 20 mA, tension clamp connection. Solid state relay for wear-free and noiseless switching and amplification of digital signals. Control and load circuit are galvanically isolated.

Technical specifications
LED display Yes
Assembly DIN rail
Rated current 20 mA
Control Voltage 230 VAC
Voltage 5-48 VDC
Logistics
Country of origin SK
Customs tariff number 85364110
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
RoHS conform Yes
