8421060000 | Weidmüller
Solid state relay, 5-48 VDC, 50 mA, DIN rail, 8421060000
Unit Price (€ / pc.)
45.9816 € *
Standard delivery time from the manufacturer is: 10 Weeks

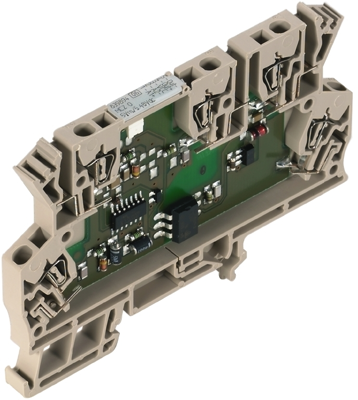

Solid state relay, 8421060000, Weidmüller
Solid state relay, open on one side, 120 V UC +5 / -15 %,1 NO contact (transistor), 5...48 V DC, 50 mA, tension clamp connection. Solid state relay for wear-free and noiseless switching and amplification of digital signals. Control and load circuit are galvanically isolated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | Yes | |
| Assembly | DIN rail | |
| Rated current | 50 mA | |
| Voltage | 5-48 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85364110 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| SVHC free | No |
| RoHS conform | Yes |
