2007230000 | Weidmüller

Built-in socket outlet, orange, 16 A/250 V, France, IP20, 2007230000

Order No.: 52P9686
EAN: 4050118392135
MPN:
2007230000
IE-FCI-PWB-FR-OR

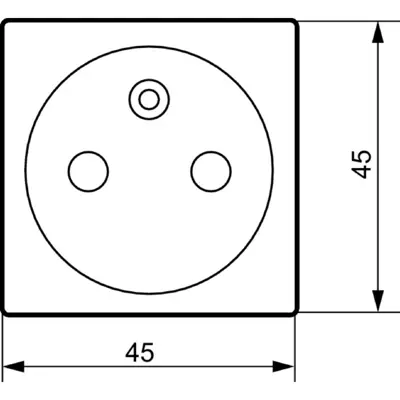

2007230000 Weidmüller Sockets, Device Sockets Image 1

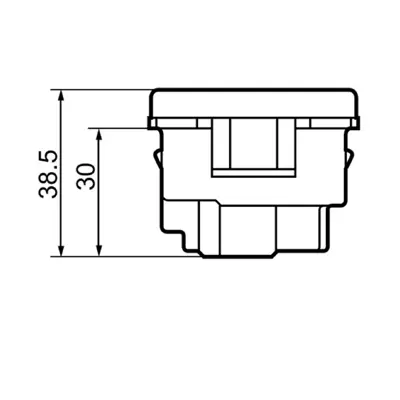

2007230000 Weidmüller Sockets, Device Sockets Image 2

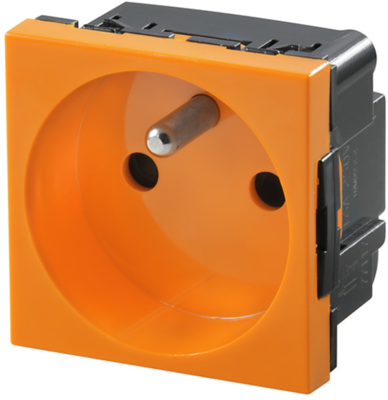

2007230000 Weidmüller Sockets, Device Sockets Image 3
Image may differ
Unit Price (€ / pc.)
25.1447 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Total Price:
25.14 € *
Price list
Quantity
Price per unit*
1 pcs.
25.1447 €
10 pcs.
23.1336 €
25 pcs.
21.2891 €
50 pcs.
19.3732 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power socket, 2007230000, Weidmüller

The 2007230000 is a socket connector that integrates multiple functions in only one single frame. This product offers a number of unique product features that will make your project planning and work activities secure, fast and future-proof. Also has an attractive housing design that offers highest impact-resistance and fully meets the requirements of IP 65 protection class. The system is easy to install and you can select from a wide range of data, signal and power modules.

Technical specifications
Version built-in socket outlet
Country code France
Colour orange
Connection push-in
Nominal power 16 A/250 V
Degree of protection (IP) IP20
Hinged cover available No
Child safety lock available No
Logistics
Country of origin FR
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
