1450800000 | Weidmüller

Built-in socket outlet, black, 15 A/125 V, USA, IP20, 1450800000

Order No.: 51P3680
EAN: 4050118255638
MPN:
1450800000
IE-FCI-PWS-US

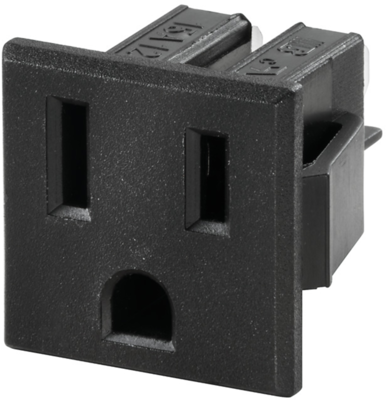

1450800000 Weidmüller Sockets, Device Sockets Image 1

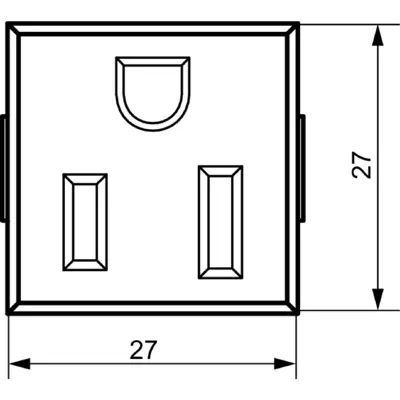

1450800000 Weidmüller Sockets, Device Sockets Image 2

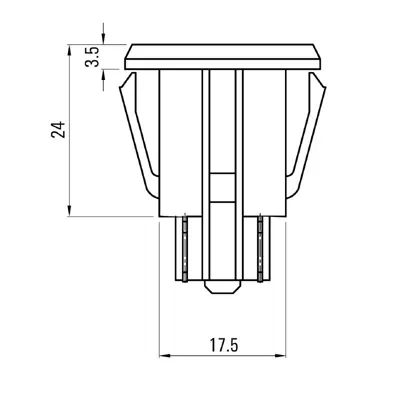

1450800000 Weidmüller Sockets, Device Sockets Image 3
Image may differ
Unit Price (€ / pc.)
25.7873 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
25.79 € *
Price list
Quantity
Price per unit*
1 pcs.
25.7873 €
10 pcs.
23.7286 €
25 pcs.
21.8246 €
50 pcs.
19.8611 €
*incl. VAT plus shipping costs
Subject to prior sale

Power socket, 1450800000, Weidmüller

The 1450800000 is a socket connector that integrates multiple functions in only one single frame. This product offers a number of unique product features that will make your project planning and work activities secure, fast and future-proof. Also has an attractive housing design that offers highest impact-resistance and fully meets the requirements of IP 65 protection class. The system is easy to install and you can select from a wide range of data, signal and power modules.

Technical specifications
Filter Property Value
Version built-in socket outlet
Country code USA
Colour black
Connection solder connection
Nominal power 15 A/125 V
Degree of protection (IP) IP20
Hinged cover available No
Child safety lock available No
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
