7760054178 | Weidmüller
Signal converter, 7760054178
Unit Price (€ / pc.)
139.1229 € *
Standard delivery time from the manufacturer is: 13 Weeks

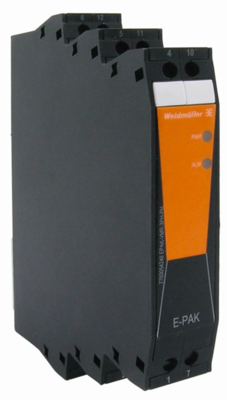

Signal converter, 7760054178, Weidmüller
The analog converters of the EPAK- series are characterized by their compact design.
Due to its wide range of functions, this family of analog converters is suitable for applications in which no international approvals are required.
Features
- Safe disconnection, conversion and monitoring of your analog signals
- Configuration of input and output parameters directly at the device via dip-switches
- No international approvals
- Robust against interference
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 80 g | |

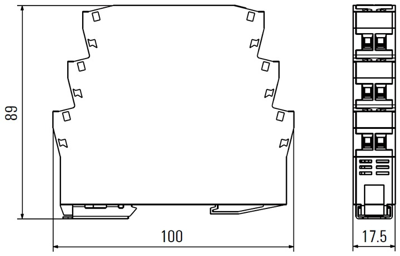

| Length | 100 mm | |
| Product type | signal converter | |
| Signal output | 1 x analog | |
| Width | 17.5 mm | |
| Height | 89 mm | |
| Version | between input⁄output⁄supply |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85437090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
