7760054175 | Weidmüller
Signal converter, 7760054175
Unit Price (€ / pc.)
148.6191 € *
Standard delivery time from the manufacturer is: 13 Weeks

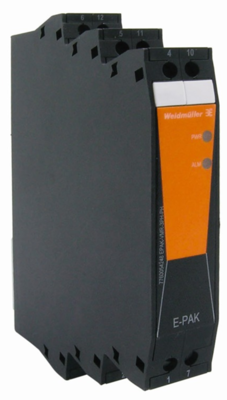

Signal converter, 7760054175, Weidmüller
The analog converters of the EPAK- series are characterized by their compact design.
Due to its wide range of functions, this family of analog converters is suitable for applications in which no international approvals are required.
Features
- Safe disconnection, conversion and monitoring of your analog signals
- Configuration of input and output parameters directly on the device via dip switches
- No international approvals
- Robust against interference

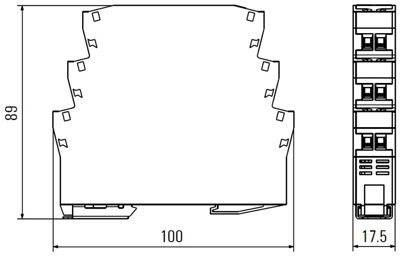

Technical specifications
| Weight | 80 g | |
| Width | 17.5 mm | |
| Height | 89 mm | |
| Length | 100 mm | |
| Product type | signal converter | |
| Version | between input⁄output⁄supply | |
| Signal output | 1 x analog |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85437090 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
