Signal converter, 2517450000
Unit Price (€ / pc.)
157.4965 € *
Standard delivery time from the manufacturer is: 2 Weeks

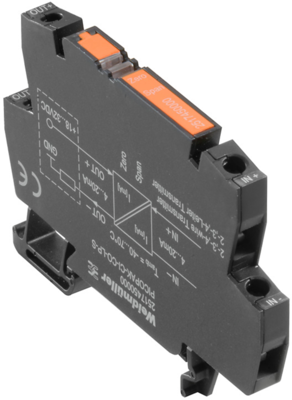

Signal converter, 2517450000, Weidmüller
Signal converter, screw terminal, output current loop powered
Features
- Space-saving in the control cabinet thanks to the narrow 6 mm width
- Passive isolator, loop spliced at input and output
- Increased operating temperature range -40°C ...+70°C
- Zero and span adjustment possible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 2-way separator | |
| Height | 79.4 mm | |
| Length | 55 mm | |
| measurement range | input 4-20 mA, output 4-20 mA | |
| Width | 6.1 mm | |
| Weight | 44 g | |
| Product type | signal converter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
