2456820000 | Weidmüller

Signal converter, 2456820000

Order No.: 53P1892
EAN: 4050118471762
MPN:
2456820000
ACT20P-BRIDGE-P
Series: ACT20P
2456820000 Weidmüller Signal Converters and Measuring Transducers Image 1
2456820000 Weidmüller Signal Converters and Measuring Transducers Image 2
Image may differ
Unit Price (€ / pc.)
379.134 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
379.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
379.134 €

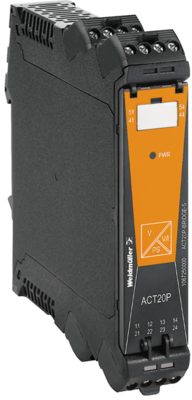

Signal converter, 2456820000, Weidmüller

Signal converter, PUSH-IN connection, input : resistance measuring bridge, output : 0(4)-20 mA

Features

  • Precise and particularly functional signal converters
  • Easy configuration thanks to display (Pro DCDC II), FDT/DTM software or DIP switches
  • Release levers simplify handling
  • More space in the control cabinet already from 12.5 mm width with two channels

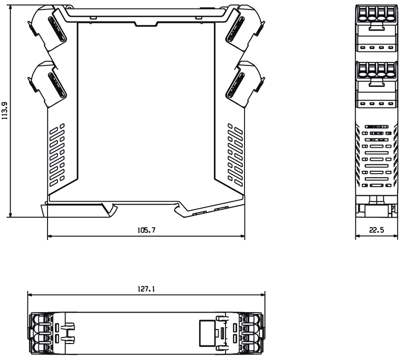

Technical specifications
Height 127.1 mm
Width 22.5 mm
Length 113.6 mm
Version DIP switch and pushbutton
Weight 205 g
measurement range output 0(4)-20 mA, 0-10 V
Product type signal converter
Logistics
Country of origin DE
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
