1506220000 | Weidmüller
Current transducer, 1506220000
Unit Price (€ / pc.)
235.3463 € *
Available in 6 Days: 5 pcs. - if ordered today

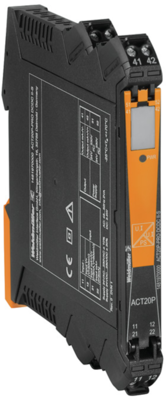

Current transducer, 1506220000, Weidmüller
Signal converter, signal multiplier, input : 0(4)-20 mA, output : 2 x 4-20 mA

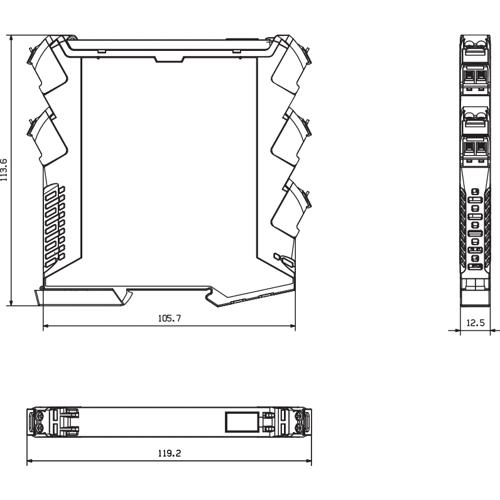

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 160 g | |
| Version | 3-way separator | |
| Width | 12.5 mm | |
| Height | 127.1 mm | |
| measurement range | input 0(4)-20 mA, output 2 x 0(4)-20 mA | |
| Product type | current transducer | |
| Length | 113.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85437090 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
