1506210000 | Weidmüller

Current transducer, 1506210000

Order No.: 51P5610
EAN: 4050118314625
MPN:
1506210000
ACT20P-2CI-2CO-12P-S
Series: ACT20P

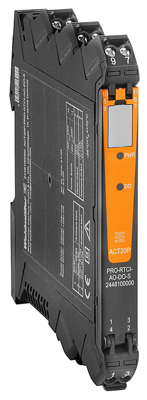

1506210000 Weidmüller Signal Converters and Measuring Transducers Image 1

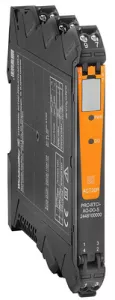

1506210000 Weidmüller Signal Converters and Measuring Transducers Image 2
Image may differ
Unit Price (€ / pc.)
235.3463 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
235.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
235.3463 €

Current transducer, 1506210000, Weidmüller

Signal converter, signal converter/isolator, dual channel, input : 0(4)-20 mA, output : 0(4)-20 mA

Features

  • Precise and particularly functional signal converters
  • Easy configuration thanks to display (Pro DCDC II), FDT/DTM software or DIP switches
  • Release levers simplify handling
  • More space in the control cabinet from 12.5 mm width with two channels
Technical specifications

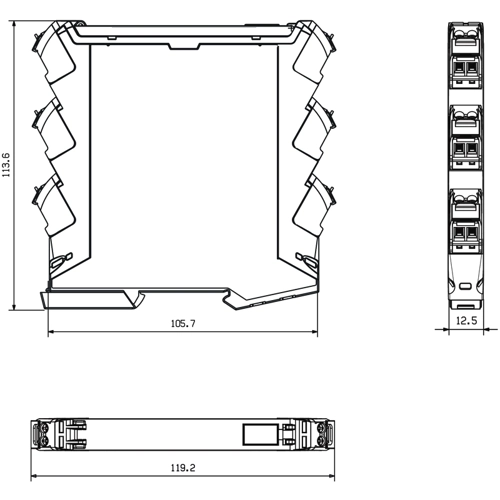

Weight 170 g
Width 12.5 mm
Height 119.2 mm
Length 113.7 mm
Product type current transducer
Version 3-way separator
measurement range input 2 x 0(4)-20 mA, output 0(4)-20 mA
Logistics
Country of origin CN
Customs tariff number 85043129
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
