9520320000 | Weidmüller

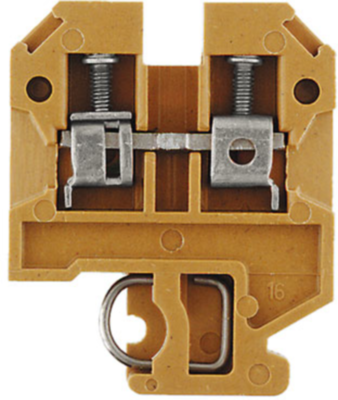

Through terminal block, screw connection, 0.5-2.5 mm², 2 pole, 24 A, beige/yellow, 9520320000
Unit Price (€ / pc.)
2.0349 € *
Standard delivery time from the manufacturer is: 2 Weeks
Feed-through terminal, 9520320000, Weidmüller
Feed-through modular terminal block, screw connection, 2.5 mm², 800 V, 24 A, number of connections: 2, TS 32, beige/yellow.
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 800 V | |
| Connection | screw connection | |
| Number of terminals | 2 | |
| Length | 44 mm | |
| Height | 36.5 mm | |
| Width | 6 mm | |
| Pin number | 2 pole | |
| Colour | beige/yellow | |
| Version | through terminal block | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
