8006320000 | Weidmüller

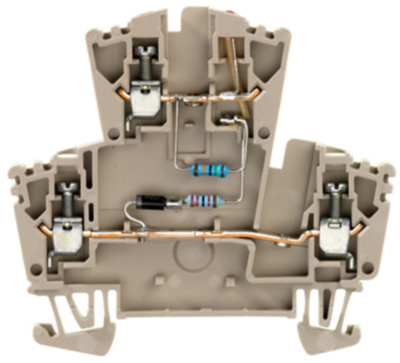

Multi level terminal block, screw connection, 0.5-2.5 mm², 20 mA, dark beige, 8006320000
Unit Price (€ / pc.)
14.9226 € *
Standard delivery time from the manufacturer is: 3 Weeks
Double-tier terminal, 8006320000, Weidmüller
Double-tier terminal block, screw connection, 2.5 mm², 24 V, number of levels: 2, dark beige
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 62.5 mm | |
| Colour | dark beige | |
| Height | 69 mm | |
| Rated current | 20 mA | |
| Connection | screw connection | |
| Degree of soiling | 3 | |
| Cable cross-section | 0.5-2.5 mm² | |
| Version | multi level terminal block | |
| Number of terminals | 3 | |
| AWG cross-section | AWG 26 to 12 | |
| Rated Voltage | 24 V | |
| Width | 5.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
