7910330000 | Weidmüller
Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 6.3 A, 6 kV, dark beige, 7910330000
Unit Price (€ / pc.)
7.6160 € *
Available: 0 pcs.
Available in 6 Days: 125 pcs.
Leadtime: On Request **
Total Price:
7.62 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6160 €
10 pcs.
6.9972 €
50 pcs.
6.3784 €
100 pcs.
5.7358 €
*incl. VAT plus shipping costs
**Subject to prior sale

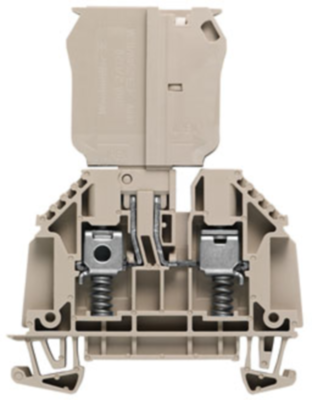

Test-disconnect terminal, 7910330000, Weidmüller
Disconnect and test-disconnect terminal block, screw connection, 4 mm², 400 V, 6.3 A, without, cross disconnection: without, integrated test socket: No, TS 35, dark beige
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Connection | Schraubanschluss | |
| Number of terminals | 2 | |
| Version | Trenn-/Messtrenn Reihenklemme | |
| AWG cross-section | AWG 26 bis 10 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 6.1 mm | |
| Colour | dunkelbeige | |
| Height | 61.5 mm | |
| Length | 97 mm | |
| Cable cross-section | 0,5-4,0 mm² | |
| Rated current | 6.3 A | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85361010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
