7907400000 | Weidmüller

Protective conductor terminal, spring balancer connection, 0.5-10 mm², 3 pole, 720 A, 8 kV, yellow/green, 7907400000

Order No.: 53P4011
EAN: 4032248422395
MPN:
7907400000
ZPE 6/3AN
Series: Z-Reihe
7907400000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
5.8905 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
5.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.8905 €

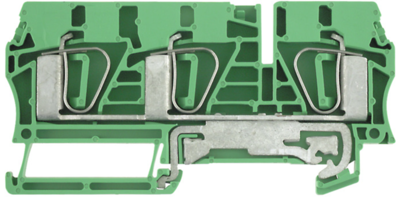

Protective conductor terminal block, 7907400000, Weidmüller

Protective conductor terminal block, spring-cage connection, 6 mm², 800 V, number of connections: 3, number of levels: 1, green / yellow.

Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Connection Federzuganschluss
Version Schutzleiter-Reihenklemme
AWG cross-section AWG 22 bis 8
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 8.1 mm
Colour gelb/grün
Height 45 mm
Length 90 mm
Cable cross-section 0,5-10 mm²
Rated current 720 A
Pin number 3-polig
Degree of soiling 3
Logistics
Country of origin RO
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
