2881470000 | Weidmüller
Through terminal block, push-in connection, 6 mm², 41 A, 8 kV, orange, 2881470000
Unit Price (€ / pc.)
4.3078 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
4.31 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3078 €
10 pcs.
3.9865 €
50 pcs.
3.7128 €
100 pcs.
3.4748 €
*incl. VAT plus shipping costs
Subject to prior sale

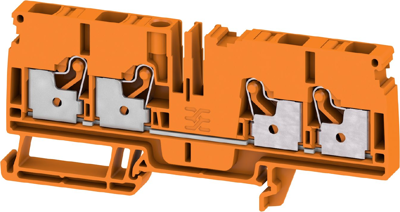

Feed-through terminal block, 2881470000, Weidmüller
Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands mechanical forces, tin-coated copper ensures optimum conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 800 V | |
| Number of terminals | 4 | |
| Height | 102 mm | |
| Colour | orange | |
| Degree of soiling | 3 | |
| Rated current | 41 A | |
| Cable cross-section | 6 mm² | |
| Version | through terminal block | |
| Connection | push-in connection | |
| AWG cross-section | AWG 22 to 8 | |
| Width | 8.1 mm | |
| Rated surge voltage | 8 kV | |
| Length | 45.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
