2871890000 | Weidmüller
Through terminal block, push-in connection, 4 mm², 32 A, 8 kV, red, 2871890000
Unit Price (€ / pc.)
1.5113 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.51 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5113 €
10 pcs.
1.4042 €
50 pcs.
1.2971 €
100 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale

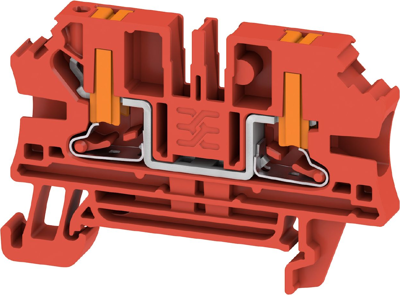

Feed-through terminal block, 2871890000, Weidmüller
Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands mechanical forces, tin-coated copper ensures optimum conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 1000 V | |
| Connection | push-in connection | |
| Rated current | 32 A | |
| Version | through terminal block | |
| Width | 6.1 mm | |
| Height | 60 mm | |
| AWG cross-section | AWG 26 to 12 | |
| Degree of soiling | 3 | |
| Rated surge voltage | 8 kV | |
| Colour | red | |
| Number of terminals | 2 | |
| Length | 39.5 mm | |
| Cable cross-section | 4 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
