2847600000 | Weidmüller

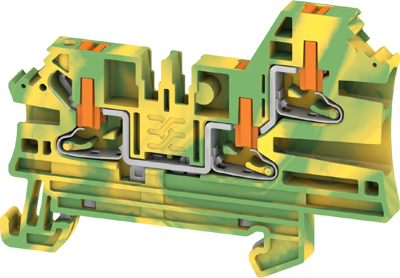

Protective conductor terminal, push-in connection, 0.14-2.5 mm², 3 pole, 8 kV, green/yellow, 2847600000
Unit Price (€ / pc.)
4.3197 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.32 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3197 €
10 pcs.
4.0103 €
50 pcs.
3.7485 €
100 pcs.
3.5105 €
*incl. VAT plus shipping costs
Subject to prior sale
Protective conductor terminal block, 2847600000, Weidmüller
PE terminal, PUSH IN, Green/yellow, 2.5 mm², 800 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 12 | |
| Length | 48 mm | |
| Number of terminals | 3 | |
| Height | 68 mm | |
| Colour | green/yellow | |
| Rated surge voltage | 8 kV | |
| Width | 5.1 mm | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Pin number | 3 pole | |
| Version | protective conductor terminal | |
| Rated Voltage | 800 V | |
| Cable cross-section | 0.14-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
