2792450000 | Weidmüller

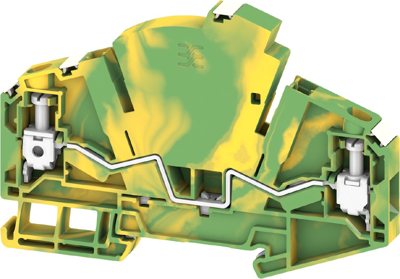

Protective conductor terminal, screw connection, 0.5-10 mm², 2 pole, 6 kV, green/yellow, 2792450000
Unit Price (€ / pc.)
7.9254 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.93 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9254 €
10 pcs.
7.4018 €
50 pcs.
6.9377 €
100 pcs.
6.5331 €
*incl. VAT plus shipping costs
Subject to prior sale
Protective conductor terminal block, 2792450000, Weidmüller
PE terminal, Screw connection, Green/yellow, 6 mm², 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| AWG cross-section | AWG 22 to 8 | |
| Rated surge voltage | 6 kV | |
| Number of terminals | 2 | |
| Length | 69 mm | |
| Width | 8.1 mm | |
| Version | protective conductor terminal | |
| Connection | screw connection | |
| Pin number | 2 pole | |
| Rated Voltage | 500 V | |
| Height | 100 mm | |
| Colour | green/yellow | |
| Cable cross-section | 0.5-10 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
