2503910000 | Weidmüller
Supply terminal, push-in connection, 0.5-1.5 mm², 17.5 A, 6 kV, dark beige, 2503910000
Unit Price (€ / pc.)
3.7604 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3.76 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7604 €
10 pcs.
3.4629 €
50 pcs.
3.1535 €
100 pcs.
2.8322 €
*incl. VAT plus shipping costs
Subject to prior sale

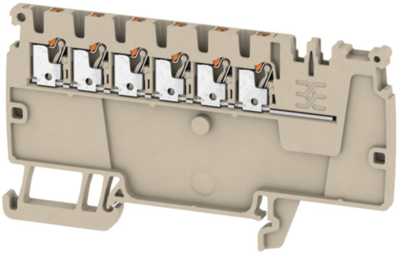

Feed-in terminal, 2503910000, Weidmüller
Power terminal block, PUSH IN, 1.5 mm², 500 V, 17.5 A, number of potentials per floor: 1, TS 35, dark beige, color of actuating elements: orange
Power terminal for potential distribution with uniform cross-connection channels.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | supply terminal | |
| Height | 85.5 mm | |
| Length | 47 mm | |
| AWG cross-section | AWG 26 to 14 | |
| Colour | dark beige | |
| Degree of soiling | 3 | |
| Number of terminals | 6 | |
| Width | 3.5 mm | |
| Rated surge voltage | 6 kV | |
| Cable cross-section | 0.5-1.5 mm² | |
| Connection | push-in connection | |
| Rated Voltage | 500 V | |
| Rated current | 17.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
