2502650000 | Weidmüller

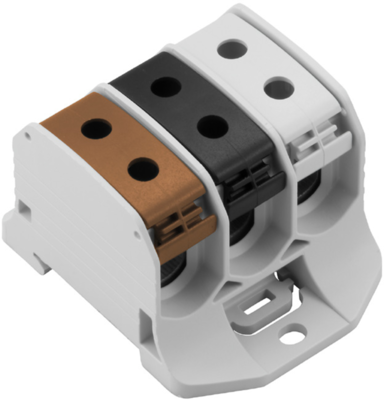

Potential distribution terminal, screw connection, 50 mm², 3 pole, 150 A, 8 kV, black/gray, 2502650000
Order No.: 53P2349
EAN: 4050118516470
MPN:
2502650000
WPD 330 3X50/3X50 1XBN/1XBK/1XGY
Series: W-Reihe
Unit Price (€ / pc.)
19.8849 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
19.88 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8849 €
10 pcs.
18.4926 €
50 pcs.
17.0051 €
*incl. VAT plus shipping costs
Subject to prior sale
Potential distributor terminal, 2502650000, Weidmüller
Potential distribution terminal, 50, 1000 V, number of poles: 3, TS 35, brown, black, light grey
Terminal for potential distribution with a high contact density.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Colour | black/gray | |
| Rated current | 150 A | |
| Connection | screw connection | |
| Pin number | 3 pole | |
| Length | 45 mm | |
| Number of terminals | 6 | |
| Rated Voltage | 1000 V | |
| Cable cross-section | 50 mm² | |
| Rated surge voltage | 8 kV | |
| Width | 56.6 mm | |
| Height | 70 mm | |
| Version | potential distribution terminal |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
