2434340000 | Weidmüller

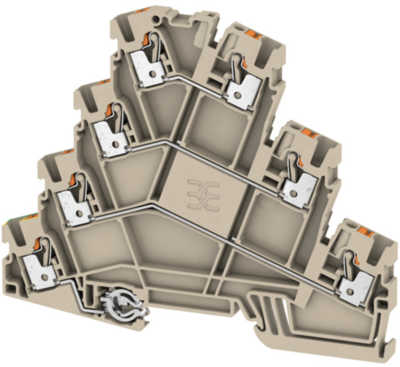

Motor connection terminal, push-in connection, 0.5-2.5 mm², 7 pole, 22 A, 8 kV, dark beige, 2434340000
Unit Price (€ / pc.)
5.3907 € *
Standard delivery time from the manufacturer is: 2 Weeks
Motor connection terminal, 2434340000, Weidmüller
Motor connection terminal, PUSH IN, 2.5, 690 V, 22 A, dark beige
The motor connection terminal combines the performance features of the larger grid with the design width of the smaller grid. The result: maximization of the rated current while minimizing the size. This provides relief in purchasing, logistics and design-in.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | motor connection terminal | |
| Number of terminals | 2 | |
| Pin number | 7 pole | |
| Cable cross-section | 0.5-2.5 mm² | |
| AWG cross-section | AWG 28 to 12 | |
| Rated surge voltage | 8 kV | |
| Rated current | 22 A | |
| Rated Voltage | 690 V | |
| Degree of soiling | 3 | |
| Length | 88 mm | |
| Width | 5.1 mm | |
| Height | 107.5 mm | |
| Connection | push-in connection | |
| Colour | dark beige |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
