2429880000 | Weidmüller
Disconnect/test-disconnect terminal block, push-in connection, 0.5-4.0 mm², 20 A, 4 kV, blue, 2429880000
Unit Price (€ / pc.)
4.4387 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
4.44 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4387 €
10 pcs.
4.0817 €
50 pcs.
3.7128 €
100 pcs.
3.3320 €
*incl. VAT plus shipping costs
Subject to prior sale

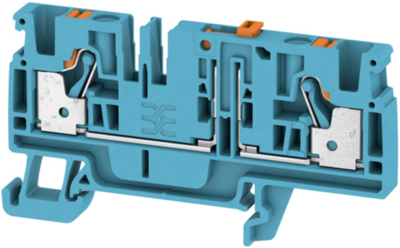

Test-disconnect terminal, 2429880000, Weidmüller
Disconnect and test-disconnect terminal block, PUSH IN, 4 mm², 500 V, 24 A, swiveling, cross-disconnect: none, integrated test socket: yes, TS 35, blue
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 12 | |
| Length | 41 mm | |
| Rated current | 20 A | |
| Number of terminals | 2 | |
| Height | 74 mm | |
| Colour | blue | |
| Rated surge voltage | 4 kV | |
| Width | 6.1 mm | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Version | disconnect/test-disconnect terminal block | |
| Rated Voltage | 500 V | |
| Cable cross-section | 0.5-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
