2428520000 | Weidmüller

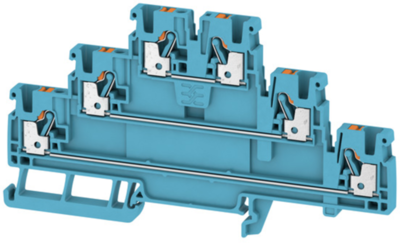

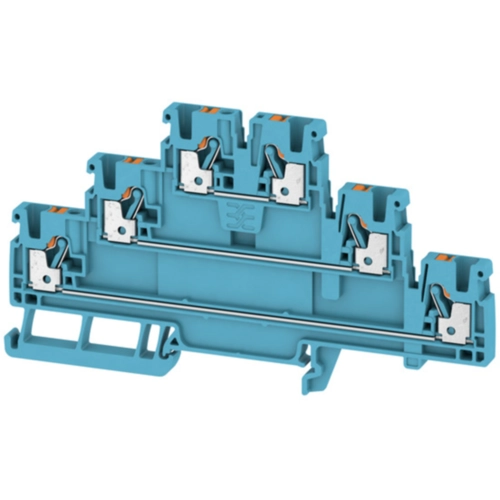

Multi level terminal block, push-in connection, 0.5-2.5 mm², 22 A, 8 kV, orange, 2428520000

Order No.: 53P1055
EAN: 4050118438116
MPN:
2428520000
A3T 2.5 BL
Series: A-Reihe
2428520000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
4.5934 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.59 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5934 €
10 pcs.
4.2245 €
50 pcs.
3.8437 €
100 pcs.
3.4629 €
*incl. VAT plus shipping costs
Subject to prior sale

Double-tier terminal, 2428520000, Weidmüller

Double-tier terminal block, PUSH IN, 2.5 mm², 800 V, 22 A, number of levels: 3, blue, orange

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Connection push-in connection
Rated current 22 A
Number of terminals 2
Width 5.1 mm
Length 64.5 mm
Rated surge voltage 8 kV
Height 116 mm
Rated Voltage 800 V
Colour orange
Degree of soiling 3
AWG cross-section AWG 28 to 12
Version multi level terminal block
Cable cross-section 0.5-2.5 mm²
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
