2065120000 | Weidmüller

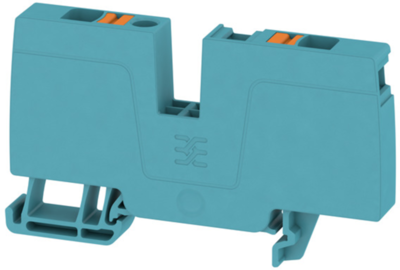

Supply terminal, push-in connection, 0.5-6.0 mm², 41 A, 8 kV, blue, 2065120000
Unit Price (€ / pc.)
3.2963 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3.30 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2963 €
10 pcs.
3.0464 €
50 pcs.
2.7608 €
*incl. VAT plus shipping costs
Subject to prior sale
Feed-in terminal, 2065120000, Weidmüller
Power terminal block, PUSH IN, 6 mm², 800 V, 41 A, number of potentials per level: 1, TS 35, blue, color of actuating elements: orange
Power terminal for potential distribution with uniform cross-connection channels.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Number of terminals | 2 | |
| AWG cross-section | AWG 22 to 8 | |
| Colour | blue | |
| Connection | push-in connection | |
| Rated Voltage | 800 V | |
| Cable cross-section | 0.5-6.0 mm² | |
| Width | 9 mm | |
| Height | 77 mm | |
| Rated surge voltage | 8 kV | |
| Version | supply terminal | |
| Length | 45.5 mm | |
| Rated current | 41 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
