1989860000 | Weidmüller

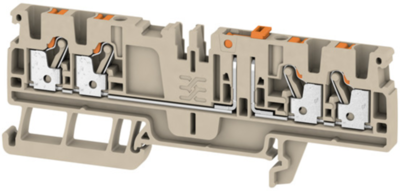

Disconnect/test-disconnect terminal block, push-in connection, 0.5-2.5 mm², 20 A, 6 kV, dark beige, 1989860000
Unit Price (€ / pc.)
4.6529 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.65 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6529 €
10 pcs.
4.2721 €
50 pcs.
3.9032 €
100 pcs.
3.5105 €
*incl. VAT plus shipping costs
Subject to prior sale
Test-disconnect terminal, 1989860000, Weidmüller
Disconnect and Test Disconnect Terminal Block, PUSH IN, 2.5 mm², 500 V, 20 A, rotatable, cross disconnect: none, integrated test socket: yes, TS 35, dark beige
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 500 V | |
| Number of terminals | 3 | |
| Height | 96 mm | |
| Colour | dark beige | |
| Degree of soiling | 3 | |
| Rated current | 20 A | |
| Cable cross-section | 0.5-2.5 mm² | |
| Version | disconnect/test-disconnect terminal block | |
| Connection | push-in connection | |
| AWG cross-section | AWG 28 to 12 | |
| Width | 5.1 mm | |
| Rated surge voltage | 6 kV | |
| Length | 37.65 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
