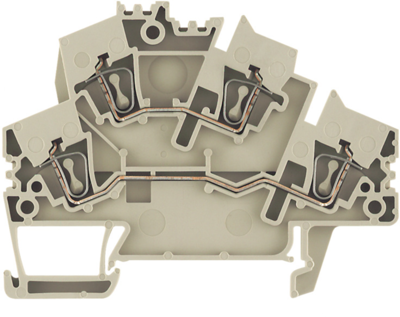

1938330000 | Weidmüller

Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 4 pole, 24 A, 8 kV, dark beige, 1938330000

Order No.: 52P6884
EAN: 4032248611256
MPN:
1938330000
ZDKPE 2.5-2 DB+BR BED OR
Series: Z-Reihe
1938330000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
4.5339 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.5339 €

Double-tier terminal, 1938330000, Weidmüller

Double-tier terminal block, spring-cage connection, 2.5 mm², 800 V, 24 A, number of levels: 2, brown, dark beige

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Version multi level terminal block
Number of terminals 1
Pin number 4 pole
Cable cross-section 0.5-2.5 mm²
AWG cross-section AWG 30 to 14
Rated surge voltage 8 kV
Rated current 24 A
Rated Voltage 800 V
Degree of soiling 3
Length 59.5 mm
Width 5.1 mm
Height 72.5 mm
Connection spring balancer connection
Colour dark beige
Logistics
Customs tariff number 85369010
Country of origin CZ
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
