1935450000 | Weidmüller

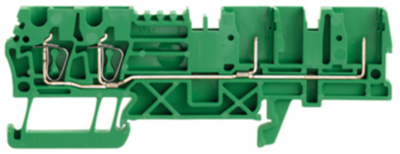

Through terminal block, spring balancer connection, 0.5-4.0 mm², 4 pole, 24 A, 8 kV, green, 1935450000

Order No.: 52P6699
EAN: 4032248600083
MPN:
1935450000
ZT 2.5/4AN/2 GN
Series: Z-Reihe
1935450000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
1.7850 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
3,570.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
1.7850 €

Feed-through terminal, 1935450000, Weidmüller

Feed-through modular terminal block, spring-cage connection, 2.5 mm², 500 V, 24 A, number of connections: 4, TS 35, green

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Version through terminal block
Number of terminals 4
Pin number 4 pole
Cable cross-section 0.5-4.0 mm²
AWG cross-section AWG 26 to 12
Rated surge voltage 8 kV
Rated current 24 A
Rated Voltage 500 V
Degree of soiling 3
Length 34.5 mm
Width 5.1 mm
Height 93 mm
Connection spring balancer connection
Colour green
Logistics
Property Value
Country of origin CZ
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
