1933780000 | Weidmüller
Protective conductor terminal, spring balancer connection, 0.5-2.5 mm², 4 pole, 300 A, 6 kV, yellow/green, 1933780000
Unit Price (€ / pc.)
4.5696 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.57 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5696 €
10 pcs.
4.2007 €
50 pcs.
3.8318 €
100 pcs.
3.4391 €
*incl. VAT plus shipping costs
Subject to prior sale

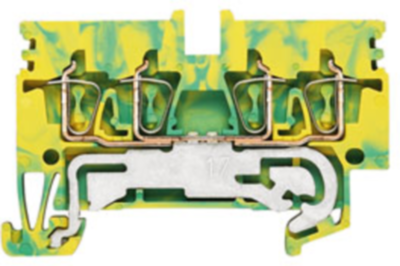

Protective conductor terminal block, 1933780000, Weidmüller
Protective conductor terminal block, tension clamp connection, 2.5 mm², 800 V, number of connections: 4, number of levels: 1, green / yellow.
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated current | 300 A | |
| AWG cross-section | AWG 30 to 12 | |
| Rated surge voltage | 6 kV | |
| Length | 60 mm | |
| Width | 5.1 mm | |
| Version | protective conductor terminal | |
| Connection | spring balancer connection | |
| Pin number | 4 pole | |
| Rated Voltage | 800 V | |
| Height | 38.5 mm | |
| Colour | yellow/green | |
| Cable cross-section | 0.5-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
