1905100000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 27 A, 6 kV, dark beige, 1905100000

Order No.: 52P5442
EAN: 4032248523351
MPN:
1905100000
WTR 4/ZZ STB
Series: W-Reihe
1905100000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
4.2602 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
4.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.2602 €

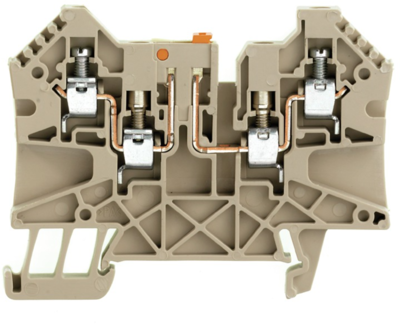

Test-disconnect terminal, 1905100000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 4 mm², 500 V, 27 A, swiveling, cross disconnect: none, integrated test socket: yes, TS 35, dark beige

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Filter Property Value
Height 70 mm
Width 6.1 mm
Rated current 27 A
Version disconnect/test-disconnect terminal block
Rated surge voltage 6 kV
Colour dark beige
Degree of soiling 3
Length 53 mm
AWG cross-section AWG 26 to 10
Connection screw connection
Rated Voltage 500 V
Number of terminals 4
Cable cross-section 0.5-4.0 mm²
Logistics
Property Value
Country of origin RO
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
