1865510000 | Weidmüller

Disconnect/test-disconnect terminal block, spring balancer connection, 0.5-4.0 mm², 16 A, 6 kV, dark beige, 1865510000

Order No.: 52P3790
EAN: 4032248434466
MPN:
1865510000
ZTTR 2.5
Series: Z-Reihe
1865510000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
4.0460 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0460 €
10 pcs.
3.7128 €
50 pcs.
3.3796 €
100 pcs.
3.0345 €
*incl. VAT plus shipping costs
Subject to prior sale

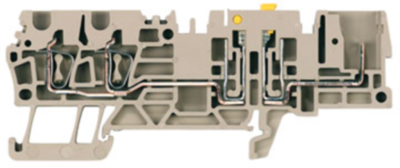

Test-disconnect terminal, 1865510000, Weidmüller

Disconnect and test-disconnect terminal block, spring-cage connection, 2.5 mm², 400 V, 16 A, swiveling, cross-disconnect: none, TS 35, dark beige

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Filter Property Value
Version disconnect/test-disconnect terminal block
Height 87 mm
Length 36 mm
AWG cross-section AWG 26 to 12
Colour dark beige
Degree of soiling 3
Number of terminals 2
Width 5.1 mm
Rated surge voltage 6 kV
Cable cross-section 0.5-4.0 mm²
Connection spring balancer connection
Rated Voltage 400 V
Rated current 16 A
Logistics
Property Value
Country of origin CZ
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
