1830610000 | Weidmüller
Through terminal block, spring balancer connection, 1.5-10 mm², 2 pole, 57 A, 8 kV, dark beige, 1830610000
Unit Price (€ / pc.)
2.9631 € *
Available: 0 pcs.
Available in 6 Days: 125 pcs.
Leadtime: On Request **
Total Price:
2.96 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9631 €
10 pcs.
2.7370 €
50 pcs.
2.4871 €
100 pcs.
2.2372 €
*incl. VAT plus shipping costs
**Subject to prior sale

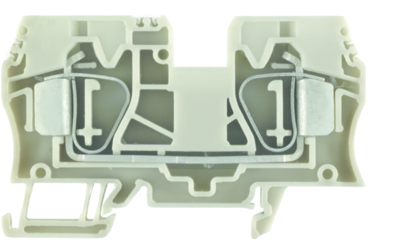

Feed-through terminal, 1830610000, Weidmüller
Feed-through modular terminal block, spring-cage connection, 10 mm², 1000 V, 57 A, number of connections: 2, TS 35, dark beige
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Version | Durchgangsklemme | |
| Number of terminals | 2 | |
| Pin number | 2-polig | |
| Cable cross-section | 1,5-10 mm² | |
| AWG cross-section | AWG 16 bis 6 | |
| Rated surge voltage | 8 kV | |
| Rated current | 57 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Length | 49.5 mm | |
| Width | 10 mm | |
| Height | 73.5 mm | |
| Connection | Federzuganschluss | |
| Colour | dunkelbeige |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
