1822210000 | Weidmüller

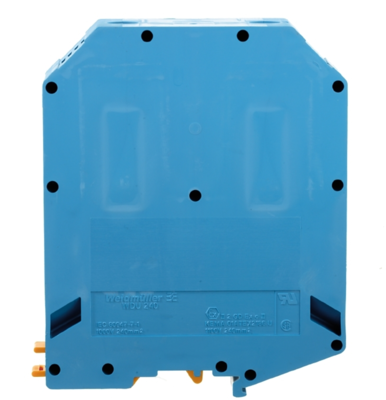

Through terminal block, screw connection, 70-240 mm², 2 pole, 415 A, 8 kV, blue, 1822210000
Unit Price (€ / pc.)
49.9681 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
49.97 € *
Price list
Quantity
Price per unit*
1 pcs.
49.9681 €
10 pcs.
47.4691 €
25 pcs.
44.6250 €
50 pcs.
41.9475 €
*incl. VAT plus shipping costs
Subject to prior sale
Feed-through terminal, 1822210000, Weidmüller
Feed-through modular terminal block, screw connection, 240 mm², 1000 V, 415 A, number of connections: 2, TS 32, TS 35, blue
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Colour | blue | |
| Cable cross-section | 70-240 mm² | |
| Version | through terminal block | |
| Rated surge voltage | 8 kV | |
| Rated current | 415 A | |
| Height | 100 mm | |
| Pin number | 2 pole | |
| Length | 123.7 mm | |
| Connection | screw connection | |
| Width | 36 mm | |
| Number of terminals | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
