1791120000 | Weidmüller

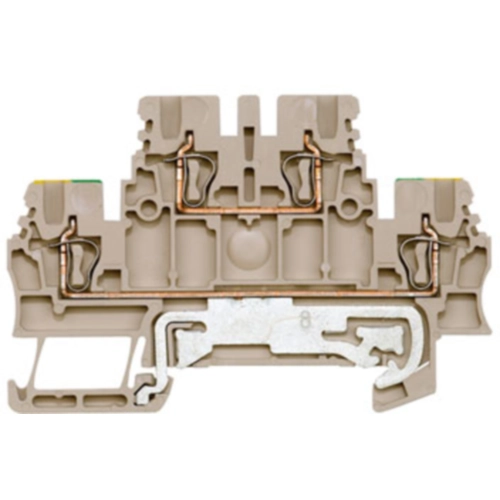

Multi level terminal block, spring balancer connection, 0.5-1.5 mm², 17.5 A, 6 kV, dark beige, 1791120000

Order No.: 52P1684
EAN: 4032248239139
MPN:
1791120000
ZDK 1.5DU-PE
Series: Z-Reihe
1791120000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
3.3915 € *
Available: 100 pcs.
Total Price:
3.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.3915 €

Double-tier terminal, 1791120000, Weidmüller

Double-tier terminal block, tension clamp connection, 1.5 mm², 500 V, 17.5 A, number of levels: 2, dark beige

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Number of terminals 4
Rated Voltage 500 V
Connection spring balancer connection
Version multi level terminal block
Width 3.5 mm
Degree of soiling 3
AWG cross-section AWG 28 to 16
Rated surge voltage 6 kV
Rated current 17.5 A
Length 49.5 mm
Colour dark beige
Height 75.5 mm
Cable cross-section 0.5-1.5 mm²
Logistics
Property Value
Customs tariff number 85369010
Country of origin CZ
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
