1784130000 | Weidmüller

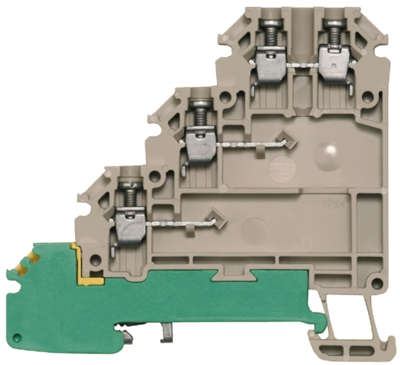

Initiator/actuator terminal block, screw connection, 0.5-4.0 mm², 17.5 A, 4 kV, dark beige, 1784130000

Order No.: 52P1353
EAN: 4032248190102
MPN:
1784130000
VLI 1.5/PE DB
Series: W-Reihe
1784130000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
4.4506 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
4.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.4506 €

Initiator/actuator terminal

Initiator/actuator terminal, screw connection, 1.5 mm², 250 V, 17.5 A, number of connections: 6, number of potentials per tier: 1, dark beige

Initiator/actuator terminal for connecting or joining wires, cores and cables with permanently safe contact.

Technical specifications
Filter Property Value
Connection screw connection
Width 6.15 mm
Colour dark beige
Rated surge voltage 4 kV
Number of terminals 4
AWG cross-section AWG 26 to 12
Length 69 mm
Degree of soiling 3
Rated Voltage 250 V
Version initiator/actuator terminal block
Height 63 mm
Rated current 17.5 A
Cable cross-section 0.5-4.0 mm²
Logistics
Property Value
Country of origin CZ
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
