1784120000 | Weidmüller

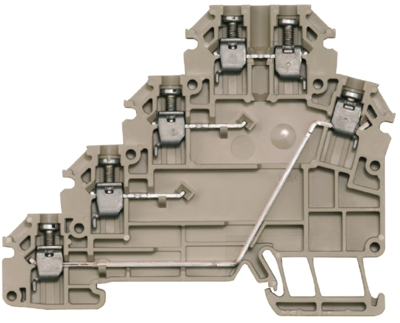

Initiator/actuator terminal block, screw connection, 0.5-4.0 mm², 17.5 A, 4 kV, dark beige, 1784120000

Order No.: 52P1352
EAN: 4032248212439
MPN:
1784120000
VLI 1.5 DB
Series: W-Reihe
1784120000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
3.9032 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.9032 €

Initiator/actuator terminal

Initiator/actuator terminal, screw connection, 1.5 mm², 250 V, 17.5 A, number of connections: 6, number of potentials per tier: 1, dark beige

Initiator/actuator terminal for connecting or joining wires, cores and cables with permanently safe contact.

Technical specifications
Filter Property Value
Connection screw connection
Width 6.15 mm
Colour dark beige
Rated surge voltage 4 kV
Number of terminals 4
AWG cross-section AWG 26 to 12
Length 79.5 mm
Degree of soiling 3
Rated Voltage 250 V
Version initiator/actuator terminal block
Height 63 mm
Rated current 17.5 A
Cable cross-section 0.5-4.0 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
