1783820000 | Weidmüller

Initiator/actuator terminal block, screw connection, 0.5-4.0 mm², 24 A, 4 kV, dark beige, 1783820000

Order No.: 52P1339
EAN: 4032248211494
MPN:
1783820000
DLI 2.5 DB
Series: W-Reihe
1783820000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
3.6295 € *
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
3.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.6295 €

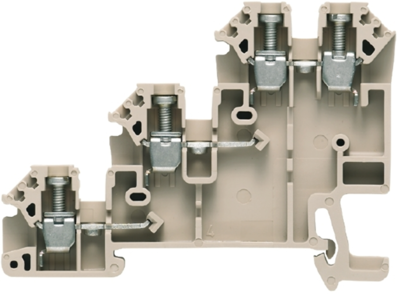

Initiator/actuator terminal

Initiator/actuator terminal, screw connection, 2.5 mm², 250 V, 24 A, number of connections: 4, number of potentials per tier: 1, dark beige

Initiator/actuator terminal for connecting or joining wires, cores and conductors with permanently safe contact.

Technical specifications
Filter Property Value
Connection screw connection
Width 6.1 mm
Colour dark beige
Rated surge voltage 4 kV
AWG cross-section AWG 26 to 12
Length 66 mm
Degree of soiling 3
Rated Voltage 250 V
Version initiator/actuator terminal block
Height 48.5 mm
Rated current 24 A
Cable cross-section 0.5-4.0 mm²
Logistics
Property Value
Country of origin CZ
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
