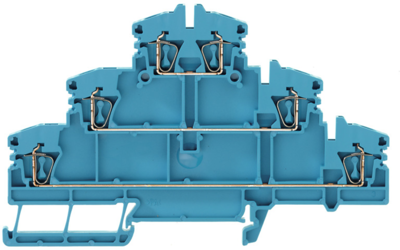

1782310000 | Weidmüller

Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 20 A, 6 kV, blue, 1782310000

Order No.: 52P1283
EAN: 4032248176533
MPN:
1782310000
ZDLD 2.5-2N BL
Series: Z-Reihe
1782310000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
3.9389 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
3.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.9389 €

Double-tier terminal, 1782310000, Weidmüller

Double-tier terminal block, spring-cage connection, 2.5 mm², 500 V, 20 A, number of levels: 3, blue

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Degree of soiling 3
Rated surge voltage 6 kV
Height 110.5 mm
Rated current 20 A
Length 69 mm
Cable cross-section 0.5-2.5 mm²
AWG cross-section AWG 26 to 12
Number of terminals 6
Connection spring balancer connection
Rated Voltage 500 V
Colour blue
Version multi level terminal block
Width 5.1 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin CZ
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
