1781740000 | Weidmüller
Through terminal block, screw connection, 0.5-6.0 mm², 2 pole, 41 A, dark beige, 1781740000
Unit Price (€ / pc.)
24.2760 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
24.28 € *
Price list
Quantity
Price per unit*
1 pcs.
24.2760 €
10 pcs.
22.3363 €
25 pcs.
20.5513 €
50 pcs.
18.6949 €
*incl. VAT plus shipping costs
Subject to prior sale

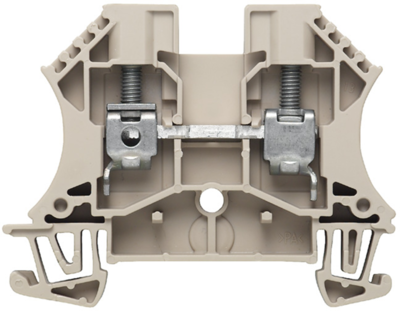

Feed-through terminal, 1781740000, Weidmüller
Feed-through modular terminal block, screw connection, 6 mm², 800 V, 41 A, number of connections: 2, TS 35, dark beige
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 800 V | |
| Pin number | 2 pole | |
| Number of terminals | 2 | |
| Height | 60 mm | |
| Colour | dark beige | |
| Degree of soiling | 3 | |
| Rated current | 41 A | |
| Cable cross-section | 0.5-6.0 mm² | |
| Version | through terminal block | |
| Connection | screw connection | |
| Width | 7.9 mm | |
| Length | 46.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
