1781730000 | Weidmüller

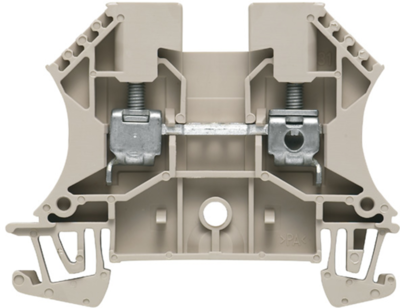

Through terminal block, screw connection, 0.5-4.0 mm², 2 pole, 24 A, dark beige, 1781730000
Unit Price (€ / pc.)
16.7909 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
16.79 € *
Price list
Quantity
Price per unit*
1 pcs.
16.7909 €
10 pcs.
15.4462 €
50 pcs.
14.0539 €
100 pcs.
12.6497 €
*incl. VAT plus shipping costs
Subject to prior sale
Feed-through terminal, 1781730000, Weidmüller
Feed-through modular terminal block, screw connection, 4 mm², 800 V, 24 A, number of connections: 2, TS 35, dark beige
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.5-4.0 mm² | |
| Height | 60 mm | |
| Rated current | 24 A | |
| Length | 46.5 mm | |
| Width | 6.1 mm | |
| Connection | screw connection | |
| Number of terminals | 2 | |
| Colour | dark beige | |
| Version | through terminal block | |
| Pin number | 2 pole | |
| Rated Voltage | 800 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
