1778080000 | Weidmüller

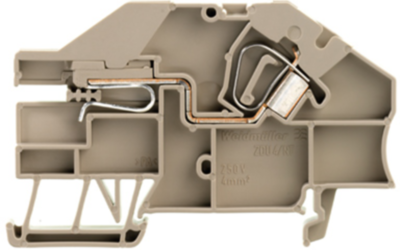

Installation terminal block, spring balancer connection, 0.5-4.0 mm², 1 pole, 32 A, 4 kV, dark beige, 1778080000
As a private customer, you can buy this item as soon as we have it back in stock.
Installation multi-tier terminal, 1778080000, Weidmüller
Installation terminal block, tension clamp connection, 4 mm², 250 V, 32 A, number of connections: 1, number of floors: 1, number of clamping points per floor: 1.
Clamp for power distribution in the building installation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | installation terminal block | |
| Number of terminals | 1 | |
| Pin number | 1 pole | |
| Cable cross-section | 0.5-4.0 mm² | |
| AWG cross-section | AWG 26 to 10 | |
| Rated surge voltage | 4 kV | |
| Rated current | 32 A | |
| Rated Voltage | 250 V | |
| Degree of soiling | 3 | |
| Length | 49.5 mm | |
| Width | 6.1 mm | |
| Height | 78.5 mm | |
| Connection | spring balancer connection | |
| Colour | dark beige |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
