1774670000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 14 A, 6 kV, dark beige, 1774670000

Order No.: 52P0963
EAN: 4032248152643
MPN:
1774670000
WTR 2.5/ZZ O.TNHE
Series: W-Reihe
1774670000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
3.8318 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.8318 €

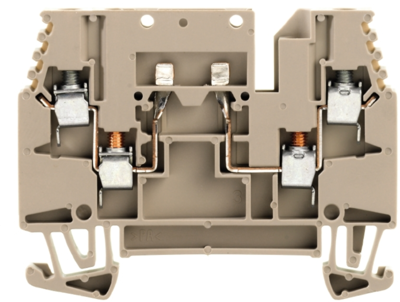

Test-disconnect terminal, 1774670000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 2.5 mm², 400 V, 14 A, without, cross disconnection: without, integrated test socket: Yes, TS 35, dark beige

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Filter Property Value
Connection screw connection
Width 5.1 mm
Colour dark beige
Rated surge voltage 6 kV
Number of terminals 4
AWG cross-section AWG 26 to 10
Length 46.5 mm
Degree of soiling 3
Rated Voltage 400 V
Version disconnect/test-disconnect terminal block
Height 60 mm
Rated current 14 A
Cable cross-section 0.5-4.0 mm²
Logistics
Property Value
Country of origin RO
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
