1712810000 | Weidmüller
Protective conductor terminal, spring balancer connection, 0.5-2.5 mm², 2 pole, 24 A, 8 kV, yellow/green, 1712810000
Unit Price (€ / pc.)
2.4276 € *
Available: 96 pcs.
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
2.43 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4276 €
10 pcs.
2.2372 €
50 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale

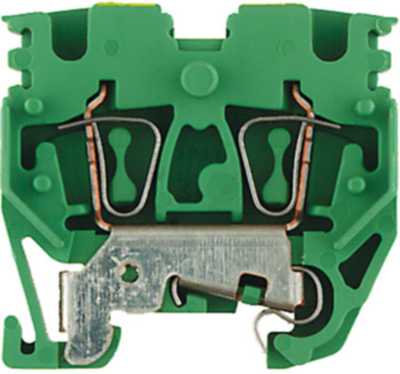

Protective conductor terminal block, 1712810000, Weidmüller
Protective conductor terminal block, tension clamp connection, 2.5 mm², 800 V, 24 A, number of connections: 2, number of levels: 1, green / yellow.
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 24 A | |
| Width | 5.1 mm | |
| Version | protective conductor terminal | |
| Height | 31 mm | |
| Colour | yellow/green | |
| Rated surge voltage | 8 kV | |
| Connection | spring balancer connection | |
| Rated Voltage | 800 V | |
| Pin number | 2 pole | |
| Length | 33.5 mm | |
| Cable cross-section | 0.5-2.5 mm² | |
| AWG cross-section | AWG 26 to 12 | |
| Degree of soiling | 3 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
