1706100000 | Weidmüller

Protective conductor terminal, spring balancer connection, 0.5-2.5 mm², 4 pole, 300 A, 8 kV, yellow/green, 1706100000

Order No.: 51P9346
EAN: 4008190915445
MPN:
1706100000
ZPE 2.5-2/4AN
Series: Z-Reihe
1706100000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
4.4268 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
4.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.4268 €

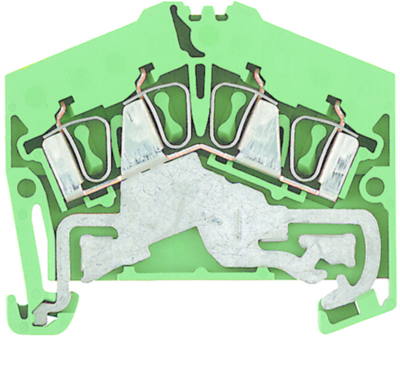

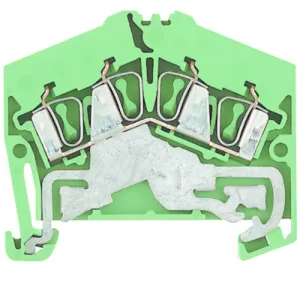

Protective conductor terminal block, 1706100000, Weidmüller

Protective conductor terminal block, tension clamp connection, 2.5 mm², 800 V, number of connections: 4, number of levels: 1, green / yellow.

Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Connection Federzuganschluss
Version Schutzleiter-Reihenklemme
AWG cross-section AWG 26 bis 12
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 5.1 mm
Colour gelb/grün
Height 43.5 mm
Length 50.5 mm
Cable cross-section 0,5-2,5 mm²
Rated current 300 A
Pin number 4-polig
Degree of soiling 3
Logistics
Country of origin CZ
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
