1704530000 | Weidmüller

Through terminal block, spring balancer connection, 0.5-2.5 mm², 2 pole, 24 A, 8 kV, yellow, 1704530000

Order No.: 51P9302
EAN: 4008190948269
MPN:
1704530000
ZDUB 2.5-2/2AN/DB GE
Series: Z-Reihe
1704530000 Weidmüller Series Terminals

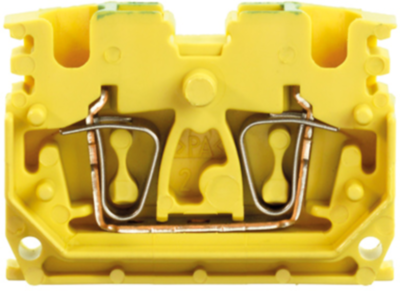

Image may differ
Unit Price (€ / pc.)
1.1305 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
1.13 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1305 €
10 pcs.
1.0472 €
50 pcs.
0.9401 €
100 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale

Feed-through terminal, 1704530000, Weidmüller

Feed-through modular terminal block, tension clamp connection, 2.5 mm², 800 V, 24 A, number of connections: 2, mounting plate, yellow.

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Version through terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.5-2.5 mm²
AWG cross-section AWG 26 to 12
Rated surge voltage 8 kV
Rated current 24 A
Rated Voltage 800 V
Degree of soiling 3
Length 24 mm
Width 5.1 mm
Height 33.5 mm
Connection spring balancer connection
Colour yellow
Logistics
Customs tariff number 85369010
Country of origin CZ
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
